Don't display images in XML JATS

[Kevin_Villarreal_Jim]

When uploading JATS XML files along with their supplementary files (images), the images do not display when attempting to view the article.

I’m using OJS 3.3.0-15, php 7.4.33

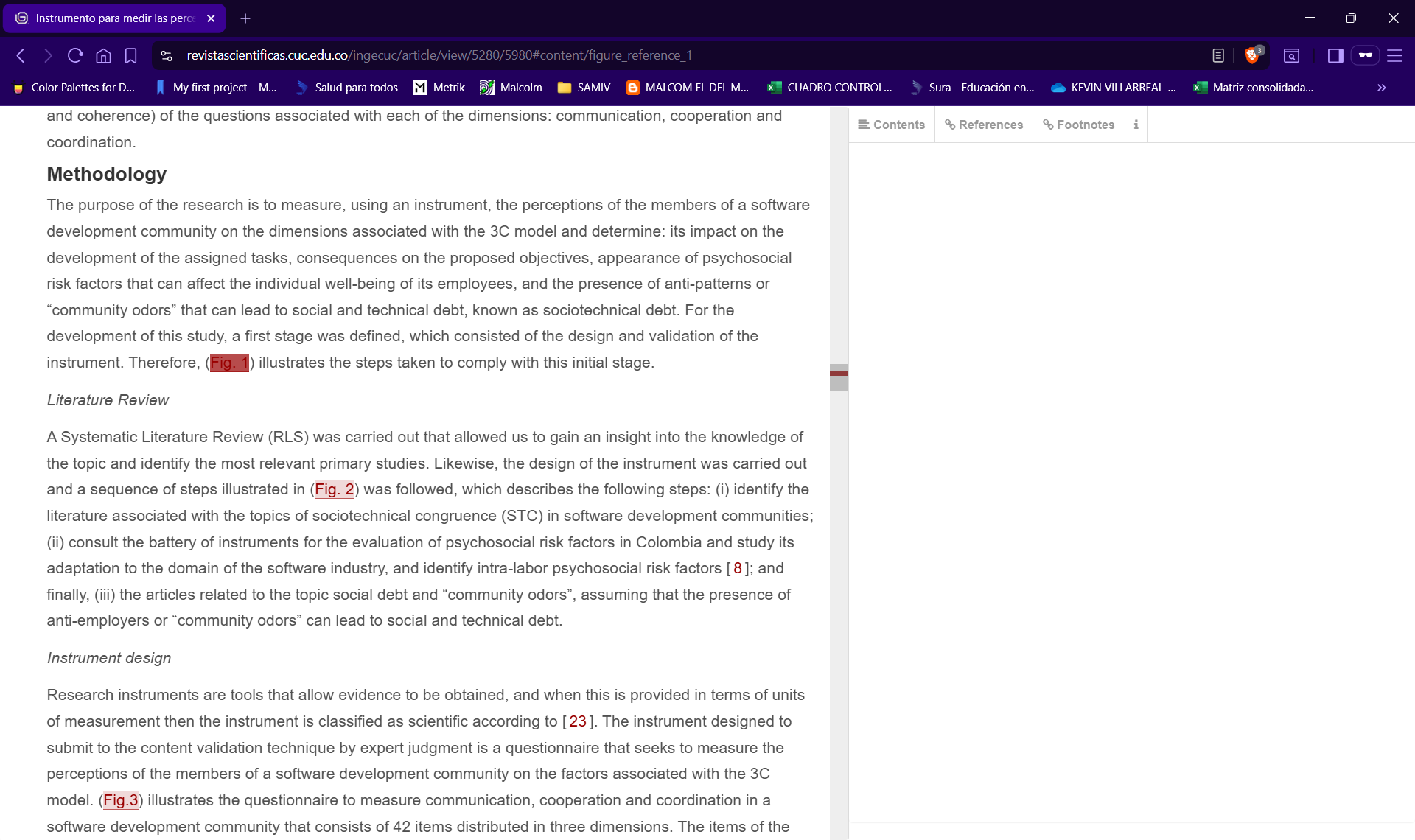

Please see the screenshots. The images reference is highlighted but I don’t see anything.

Any clue? thanks for the help

[rcgillis]

Hi @Kevin_Villarreal_Jim,

Where are your images hosted on your server? Have you checked to see that they’re in a web-accessible location ?

-Roger
PKP tEam

[Kevin_Villarreal_Jim]

Thank fou Roger for you reply, yes I checked the images, those are located in:

files\journals\1\articles\2

with other files such as PDF and XML

[rcgillis]

Hi @Kevin_Villarreal_Jim,

Thanks for sharing these additional details. Paging my colleague @Vitaliy, who has worked more directly with this type of issue in the past. Vitaliy - are you able to provide some insights on this?

-Roger
PKP Team

[iriarte]

Hi @Kevin_Villarreal_Jim,

At Geneva we encountered this type of problem, and the behaviour was caused by the ‘IMAGE’ component, which had been removed on the journal configuration. My colleague documented the solution that works for us:

docxConverter unable to extract images - problem and solution

Colleagues, I’d just like to point out a problem we encountered when trying to produce JATS files with the excellent docxConverter plugin, and the solution to this problem. Problem: for some of our journals, docxConverter was unable to extract the images from the .docx file. Only an .xml file was saved. On the other hand, everything worked fine for other journals in the same OJS instance. Cause of problem: for the journals concerned, it appeared that the “Image” component (key = IMAGE) was ma…

Hope that helps!

Pablo
